Eyoyo Mini 1D Bluetooth Barcode Scanner, 3-in-1 Bluetooth & USB Wired & 2.4G Wireless Barcode Reader Portable Bar Code Scanning Work with Windows, Android, iOS, Tablets or Computers

Item No.: EY-009L
【Super Mini Pocket 1D Scanner】: Completely mini pocket size and 35g/1.23oz ultralightweight, making our this Eyoyo barcode scanner to be a better choice for portable use. especially for book store, online store, sales shop, warehouse, etc place.
【3-in-1 Connection Ways】: You can according to your needs to switch between 2.4G wireless & Bluetooth & USB wired three types of connection mode more convenient . also Eyoyo Bluetooth barcode scanner delivers up to 30m/98ft transmission distance in barrier free under the 2.4G wireless mode, up to 50m/164ft transmission distance barrier free under the Bluetooth mode.

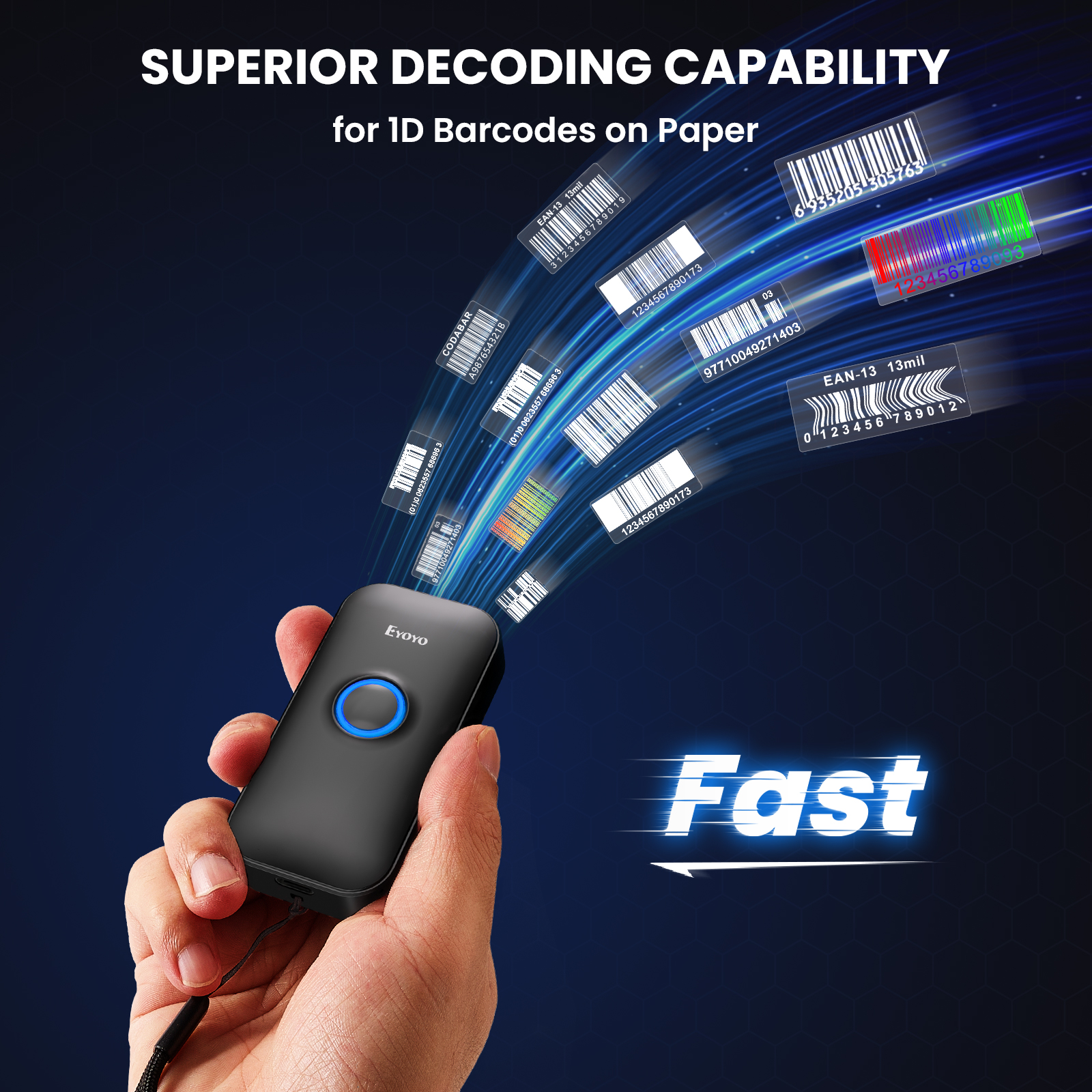

【Advanced 1D Scan Technology】: Eyoyo 1D scanner easily capture 1D code including UPC/EAN, Code39, Interleaved 2 of 5, Code93, Code 128, Codabar, Industry25, Matrix25, etc barcode. Also with super decoding ability support scan damaged barcode, distortion barcode, colorful barcode and reflective barcode, etc special barcode.
【High Compatibility & 650mAh High Capacity Battery】: Eyoyo Bluetooth scanner can connect with laptop, PC, POS, smartphone, tablet, iPhone, iPad and computers to perfectly work with common operating systems such as windows xp/7/8/10, Mac OS, Linux, Windows Mobile. Also with 650mAh rechargeable battery can continuously work for 5 hours after 2 hours fully charged.
【Multiple Configuration Options】: Eyoyo wireless barcode scanner support instant upload and storage mode two types use modes, also support turn on or off the sound and vibration, hide/add custom prefix/suffix digits, delete character, add keyboard keys (TAB, CR&LF, etc.) to the scanning operation and so on. freely choose by your needs.
Description FAQ
Eyoyo Pocket Mini 1D Bluetooth barcode scanner with Bluetooth, 2.4G Dongle Wireless and Wired 3-in-1 Connection Modes.
and with stronger decoding capability and long transmission range feature.
meanwhile, completely mini pocket size and only 35g/1.23oz weight making this Bluetooth more portable to take.
what's more, mini size but equipped 650mAh high capacity rechargeable battery, easily work 5 hours after 2 hours fully charged.


Pls Note: Can't scan 2D code, can't scan 1D code from screen. only support scan 1D code.

Features:
1. Wired and wireless dual mode freely switching.

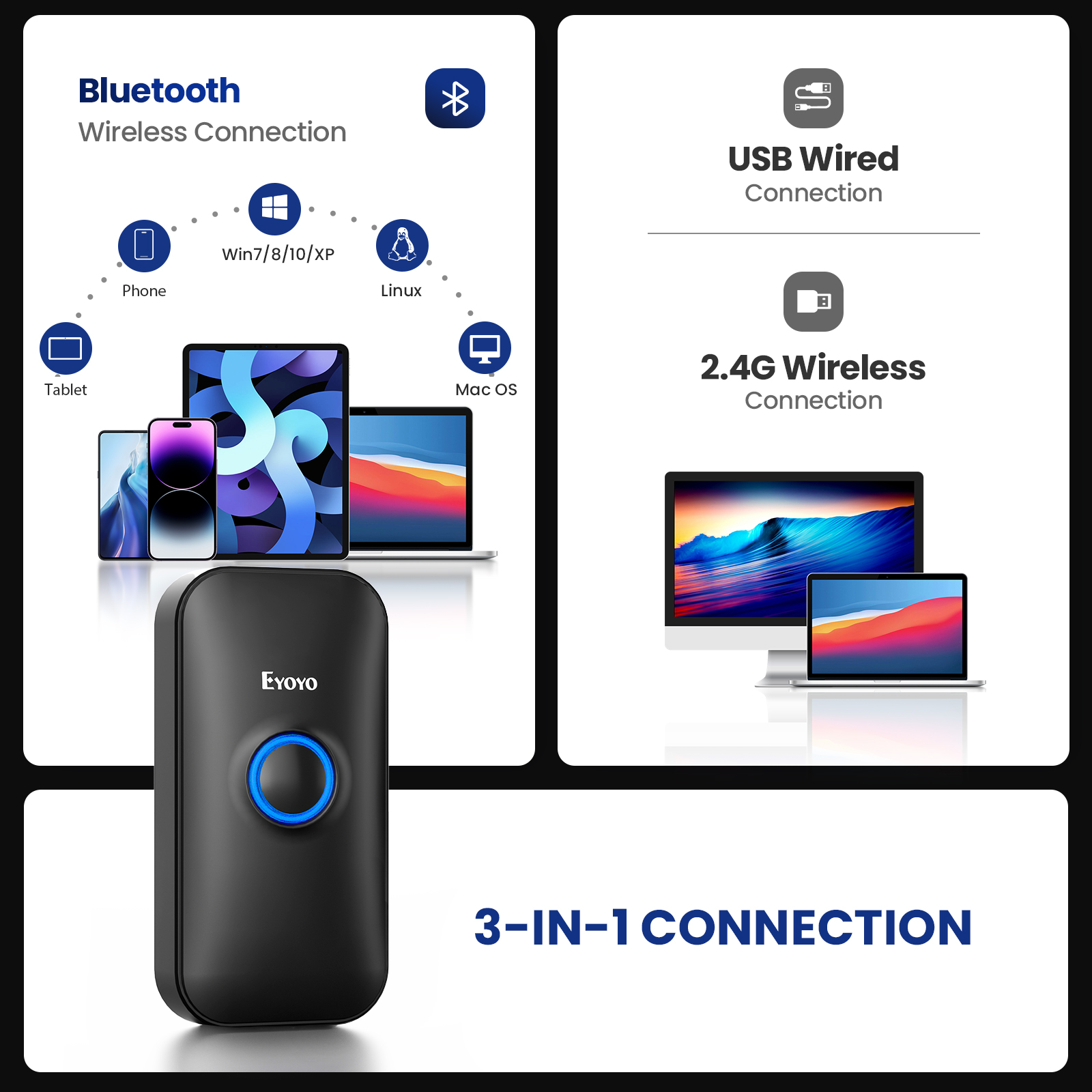

2. Support 2.4G dongle wireless & Bluetooth wireless & USB wired three types of connection ways.

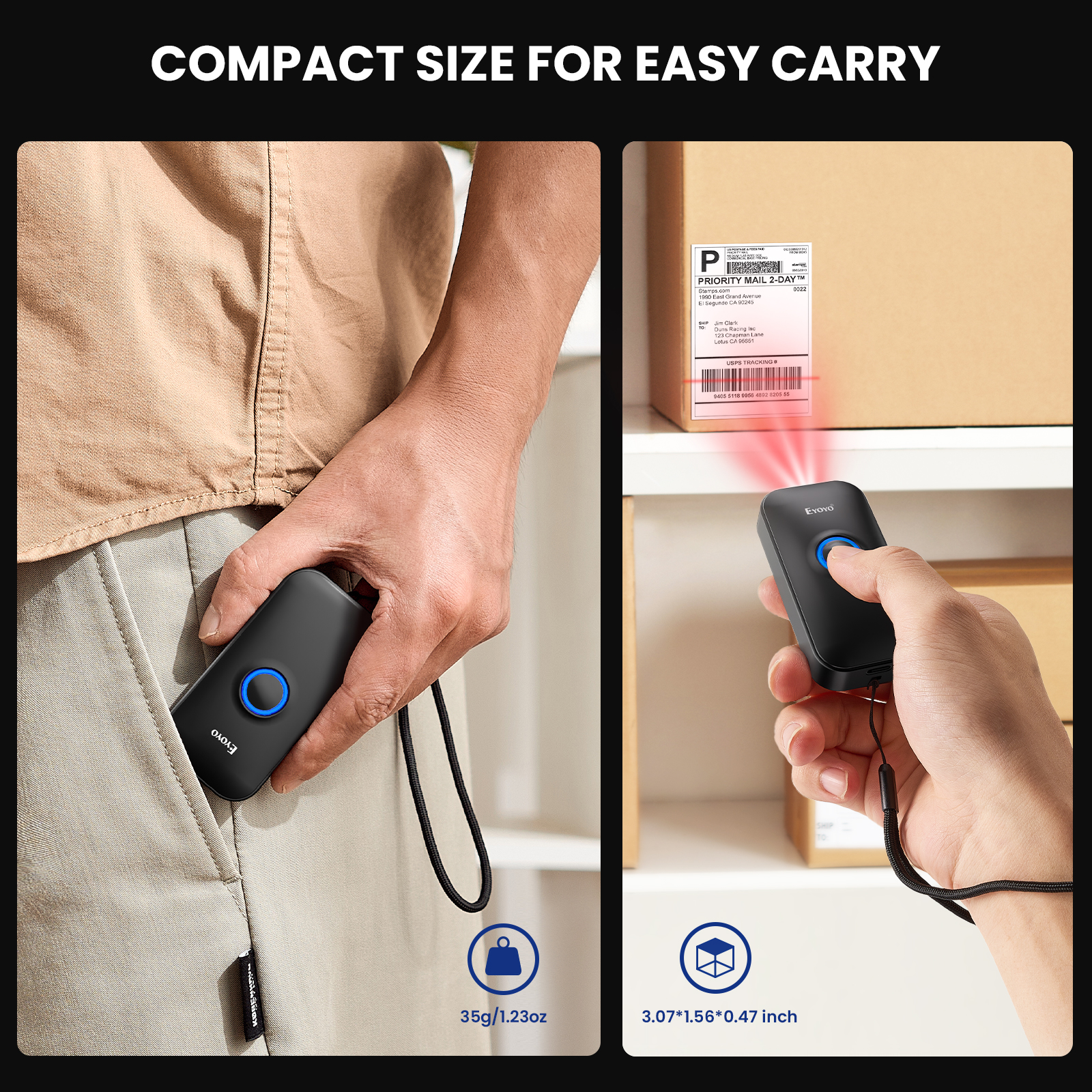

3. Only weight 35g/1.23oz, mini size and portable carry.
4. Support Windows XP, Win7, Win8, Win10 operating system PC, Android, IOS devices
5. Support normal mode, storage mode and switch freely.

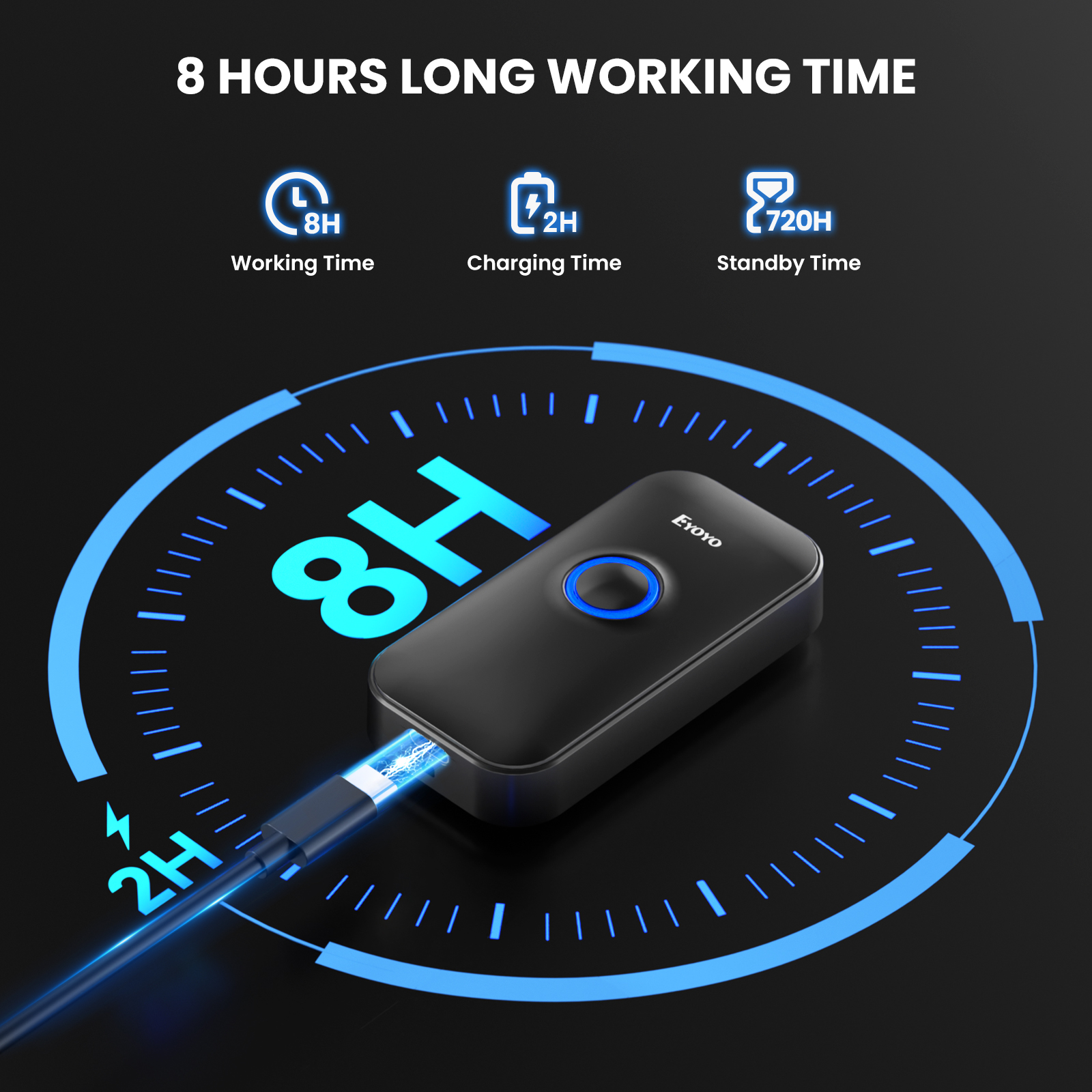

6. 650mAh rechargeable battery can use up to 5H continuous scanning time, only need 2H to charge. Standby time is up to 30days.
7. 16MB Large capacity storage, safe and reliable. Under off-line scanning mode can store barcodes more than 100000pcs.
8. In obstacles environment, 15m/49ft transmission distance(2.4G Transmission Mode)
9. In obstacles environment, 20m/66ft transmission distance (Bluetooth transmission mode).
10. The sound and vibration can be turned off.
11. Support hide/add custom prefix/suffix digits.
12. Support Bluetooth HID protocol, SPP protocol and BLE protocol (Bluetooth Transmission Mode).
13. Rich symbologies supported.
14. Adopting imported trigger button, long life, fitting perfectly in your hand for comfortable use.


Package Including:

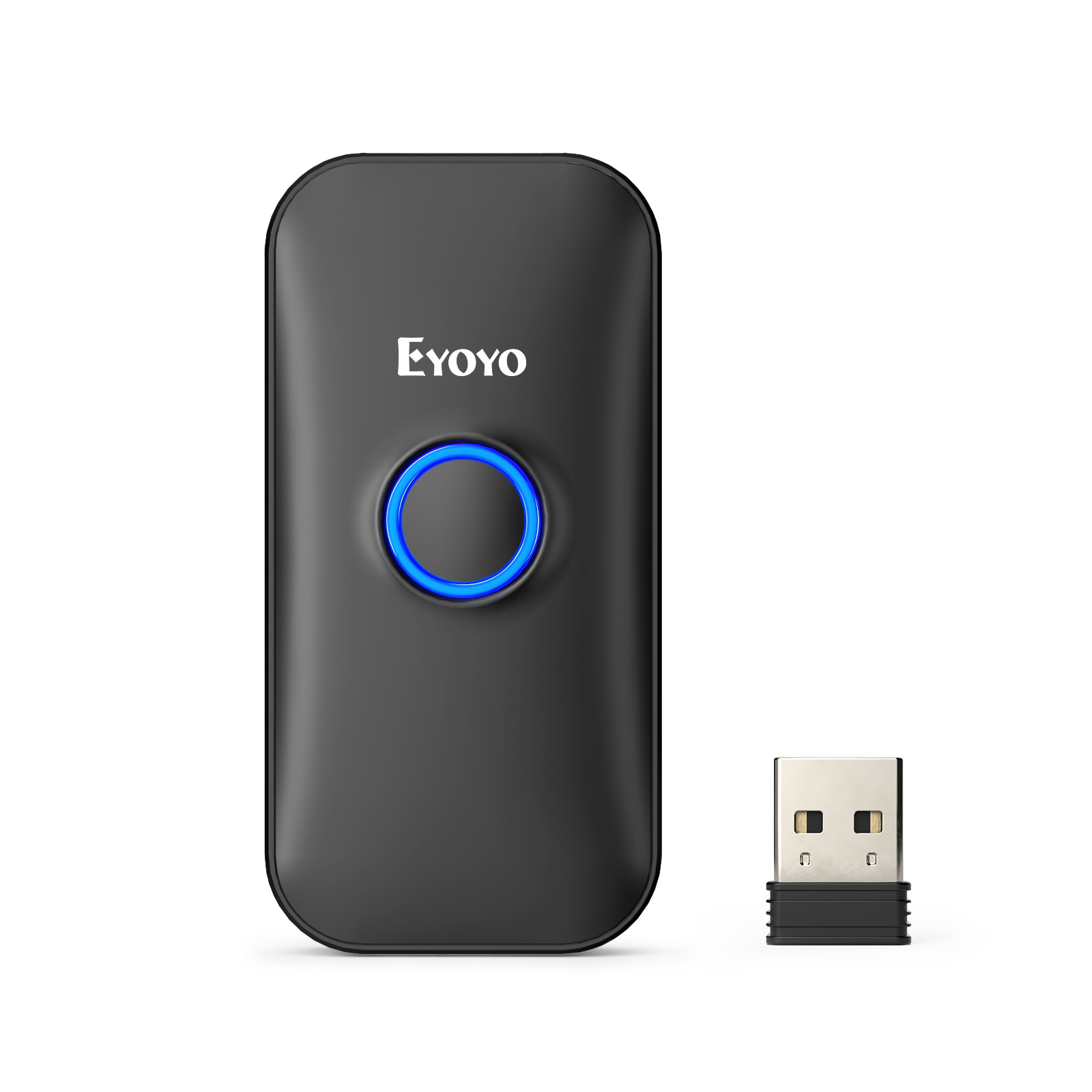

1x Eyoyo 1D barcode scanner
1x USB Charging Cable
1x 2.4G USB Dongle
1x Manual

Q1:Does it work with apps like Chromebooks,shopify,the Cognex scanner app, the walmart gif 2 app, etc?
A1:First of all, the barcode scanner supports three Bluetooth protocols: HID, BLE, and SPP.
     Please check whether your APP supports one of these three protocols.
     If none of the three is supported, the scanner is uncompatible with your device or APP; otherwise, the scanner can be used in conjunction with your device or APP.
     Please note:since most of the customer's devices or APPs support HID mode, the scanner defaults to the Bluetooth HID protocol when it leaves the factory.
     Please check whether your APP defaults to the HID protocol. If it is, please directly pair it with Bluetooth. If it supports SPP or BLE, please change the Bluetooth protocol through the manual before connecting.

Q2:Does it work with an Iphone?
A2:The scanner supports working with iPhone.

Q3:Are there any ways we can turn off blue the light when scanning?
A3:The scanner light cannot be turned off.

Q4:The scanner won't turn on.
A4:First make sure the scanner is fully charged. If the scanner won't turn on when it is
fully charged, please contact support@eyoyousa.com and send some videos showing your problem.

Q5:What is the password to download the manual?
A5:The password of download manual on Eyoyo official website is support@eyoyo.

Q6:The scan result is not displayed correctly.
A6:If the scan result is missing characters or data, please check the manual to reduce the transmission speed.
If the scan result shows different characters, please ask the customer to check whether the keyboard language of his device is English, if not, please check the manual to change the keyboard language or contact support@eyoyousa.com for the setting code.

Q7:So will this replace trying to use my phones camera to scan barcodes?
A7:It will not affect the use of the camera of the phone itself.

Q8:how can I turn off the scanner if I was not using it? or does it automatically turn off?
A8:Please scan the setting code in the manual to set.

Q9:Can its sound be adjusted or muted?
A9:Please scan the setting code in the manual to set.

Q10:What type of charger can it be charged with?
A10:Please use a charger with a specification of 5V/1A.

Q11:Does this scanner work with excel?
A11:It can work with Excel, world, TXT documents and memos, etc.

Q12:Can you provide a tax invoice on purchase?
A12:Yes, please contact the online seller after placing the order.

Q13:Do you need a WiFi connection for this to work?
A13:No need to use WiFi, just do Bluetooth pairing directly.

Q14:Will this scan into any text field on any app?
A14:Most are supported.

Q15:Is there trigger mode of this device?
A15:This barcode scanner is in trigger mode by default.

Q16:Is there a continuous scanning mode or do you have to push the button for each scan?
A16:You can set the barcode scanner to continuous scanning mode.

Q17:In storage mode,can it detect duplicates?
A17:Not,it can't.

Q18:How do you access the data from the scanner?
A18:When the scanner is successfully connected to your device, please open an EXCEL form or notepad, etc., click on the blank space and scan the code, you can see the data.

Q19:Can this BT(Bluetooth) pair to multiple devices at once?
A19:The scanner can only be Bluetooth paired with one device at a time.

Q20:Does this allow for customizing the pre or post amble?
A20:Yes,please contact support@eyoyousa.com for the setup codes.

Q21:How do I connect to my business system?
A21:Please contact support@eyoyousa.com

Q22:Does this model support adding suffix and prefix ?
A22:Please send what characters you want to prefix or suffix to support@eyoyousa.com to get the setup code.

Q23:The scanner will only work when it is plugged into the computer, will not for me via blue tooth or wireless usb, what do I do?
A23:Please contact support@eyoyousa.com to send some video showing your problem.
      Also, please provide your purchase order number.

Q24:Can i get another copy of the manual? is there a pdf or an online version?
A24:Yes,please contact support@eyoyousa.com for  the manual.

Q25:My button seems to be stuck and won't let press - can this be reset?
A25:Please contact support@eyoyousa.com to send some video showing your problem.
      Also, please provide your purchase order number.

Q26:How to get a wireless usb dongle(2.4G reciver)?
A26:Please contact support@eyoyousa.com

Q27:I have it connected to my ipad but it won’t scan anything.
A27:Please contact support@eyoyousa.com to send some video showing your problem.

Q28:Is there a way to speed up or slow down the numbers being displayed after scanning.
A28:Yes,it supports.Please contact support@eyoyousa.com for the setting code.

Q29:The scanner cannot scan certain barcodes?
A29:Please contact support@eyoyousa.com to send barcodes that you cannot scan.

Q30:The scanner is no longer scanning.
A30:Please contact support@eyoyousa.com to send some video showing your problem.

Q31:The scanner doesn't charge anymore.
A31:Please contact support@eyoyousa.com to send some video showing your problem.

Q32:Does this Work on QR codes?
A32:This Bluetooth barcode scanner only supports scanning 1D barcodes, not QR 2D codes.

Q33:What type of charging cord does the scanner use?
A33:Type-C port

Q34:What is the double sided tape for? Each scanner comes with two pieces.
A34:The phone and barcode scanner can be attached back-to-back with double-sided tape.

Q35:my button seems to be stuck will not let press down -- can this be reset ?
A35:Please contact support@eyoyousa.com to send some video showing your problem.
       Also, please provide your purchase order number.

Q36:The light doesn't come on at all and the device will not connect to Bluetooth.
A36:Please contact support@eyoyousa.com to send some video showing your problem.
       Also, please provide your purchase order number.
