E7S PRO 3G SDI 4K HDMI 7 Inch Camera Field Monitor Full HD 1920x1200 IPS Camera-top Screen DSLR Monitor Compatible FS7 EVA1 Camera with F970 LP-E6 Battery

Item No.: E7S PRO
【3G-SDI Input & Output Field Camera Monitor】E7S PRO support 3G-SDI signal, so you can connect them to the camcorder to meet more professional needs, can compatible  FS7 EVA1 Camera.

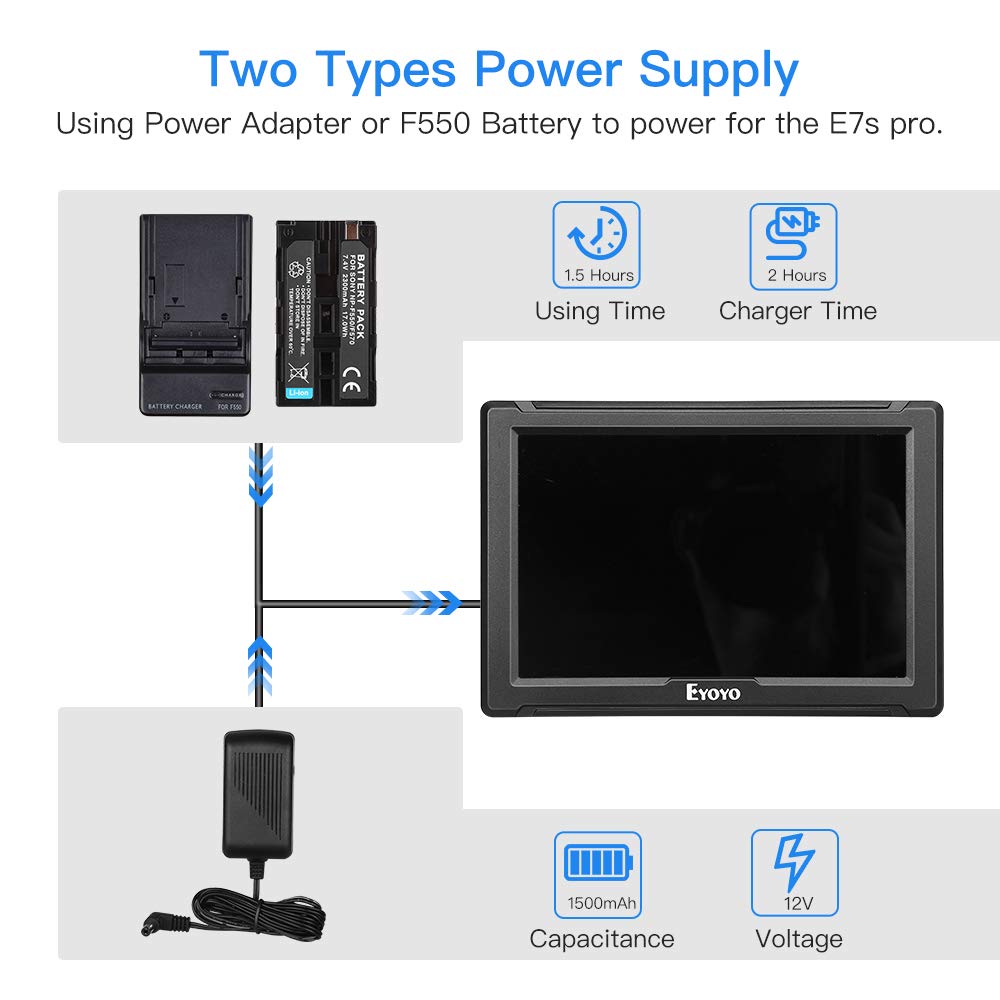

【Powered by F550 Battery & 12V Charger】: Our monitor provides F550 battery and charger two types of charge way for the customer, you can choose it freely. The 2300mAh high capacity F550 battery can use 1.5 hours, you needn't buy extra batteries for our E7S PRO field camera monitor, more convenience and intimate.

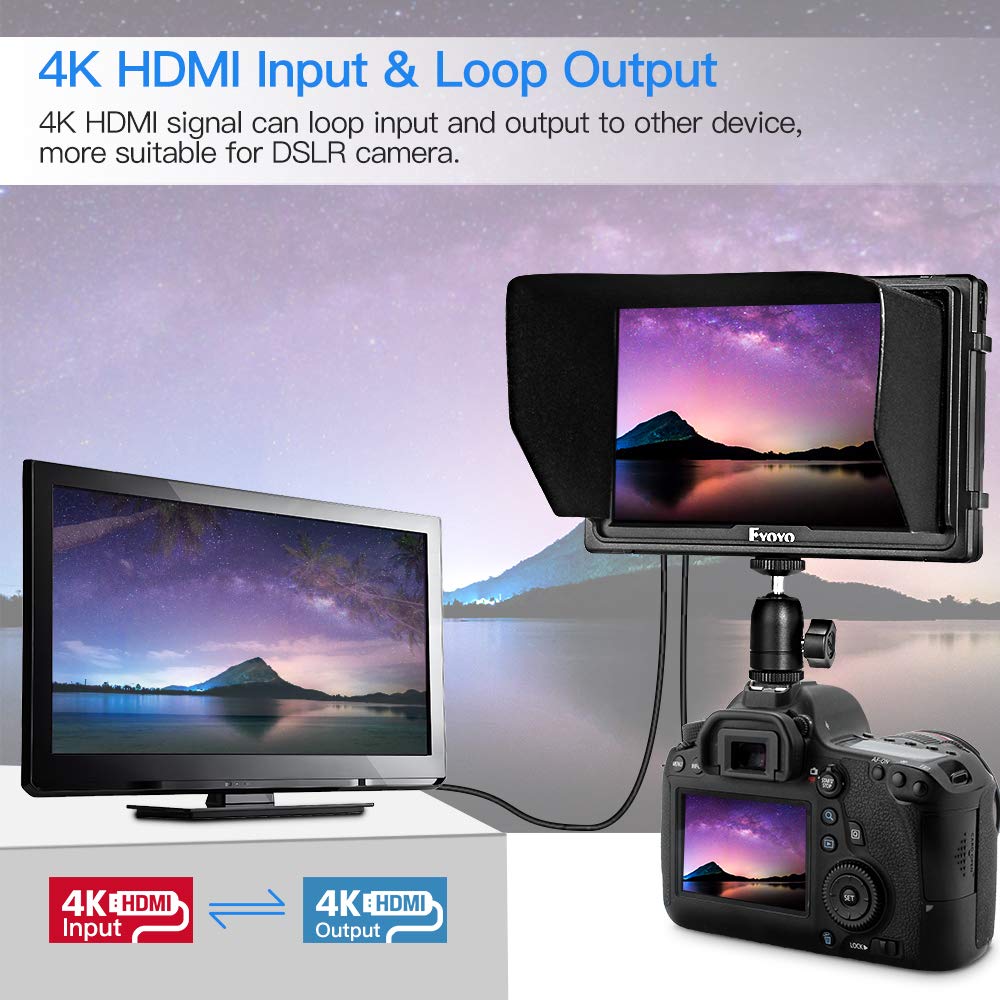

【4K HDMI Input & Output DSLR Monitor】The E7S PRO 0n-camera monitor support 4K HDMI signal, it can loop output to the other monitor or device when HDMI signal input to Eyoyo E7S monitor, while still maintaining the original video quality.

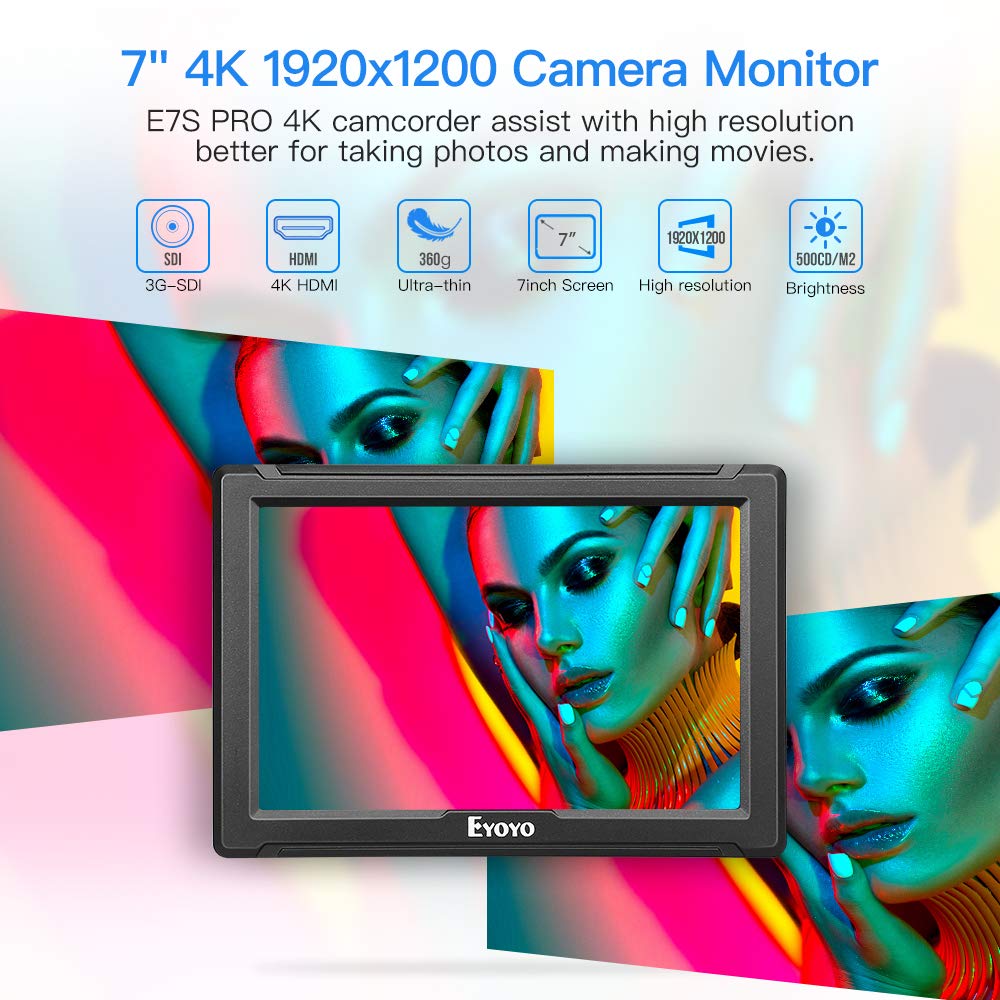

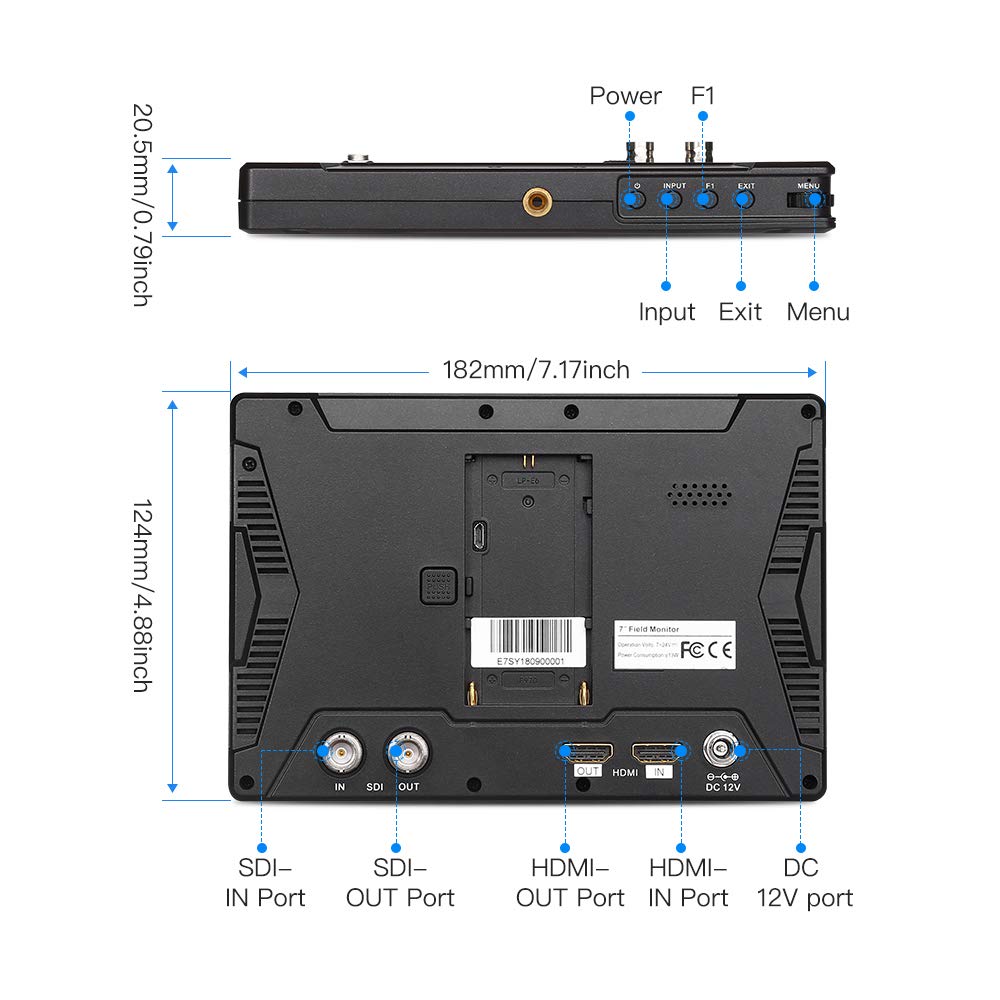

【1920x1200 IPS Monitor】7 inch 16:10 8bit IPS LCD panel of 170° wide viewing angle with 1920x1200 high resolution(324ppi), 1000:1 High Contrast, 500cd/㎡ High Brightness features assist the cameraman to enjoy a better photography experience. and 310g ultraweight, 20.5mm ultrathin design make the photographer more portable in outdoor use.

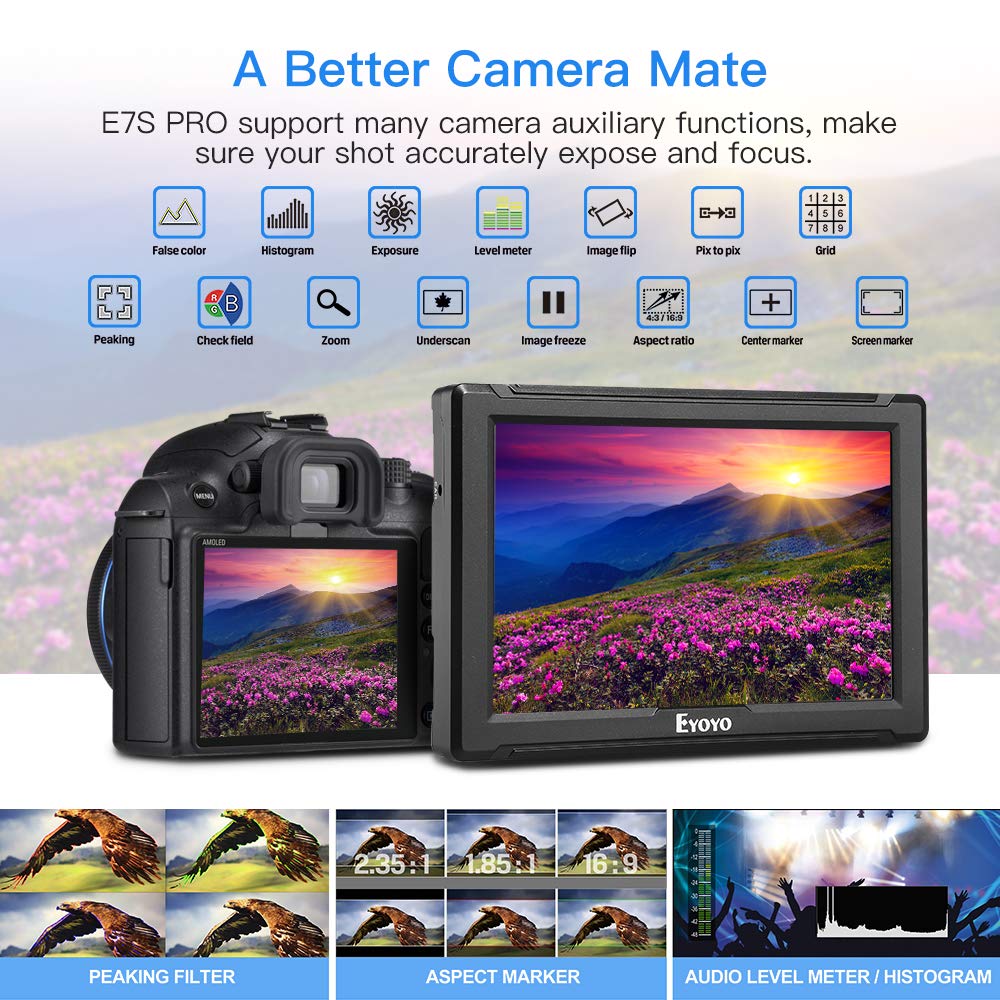

【Professional Camera Auxiliary Functions 】E7S PRO camera top monitor integrated histogram, embedded audio, false color, exposure, check field, nine grid and zoom in professional functions, assist users to accurately exposure and focus when shooting, making and playing movies/ videos. matches with world-famous 4K/FHD camera brands, to assist cameraman in better photography experience.

E7S PRO 3G SDI 4K HDMI 7 Inch Camera Field Monitor Full HD 1920x1200 IPS Camera-top Screen DSLR Monitor Compatible Sony FS7  EVA1 Camera with F970 LP-E6 Battery(SKU:ZB0572MG)

Our Eyoyo new arrival 3G-SDI 4K-HDMI 7 Inch Camera Field Monitor. The E7S PRO on-camera monitor with 1920 x1200 high resolution is a better product for 3G-SDI Camcorder and 4K DSLR Camera. first, with 3G-SDI input and loop output supports 4K 3G-SDI for camcorder, compatible Sony FS7, EVA1. and support 4K input and loop output for DSLR Camera. Then, we especially prepared an F550 battery and 12V adapter power for E7S POR, you can choose the power supply according to your needs. and the F550 battery can use 1.5 hours, long time use and easy to carry out. Finally, it is very light and thin, 310g lightweight only 20.5mm thickness, more portable beneficial to the photographer in outdoor use.

Please note:
1. This E7S POR 3G SDI 4K HDMI 7 Inch Camera Field Monitor including F550 battery and 12V adapter, and also support F970 and LP-E6 battery power supper, but we advise you use our F550 battery or adapter, in order to avoid using the unoriginal battery to damage our E7S POR.

2. Please take off the battery if you don't use the monitor. otherwise it will drain your battery.

Brand: Eyoyo
Display Screen: 7 inch
Physical Resolution: 1920x1200
Brightness: 500cd/m2
Contrast: 1000:1
Viewing Angle: 170°/170°(H/V)
Input: 4K HDMI & 3G-SDI
Audio: Speaker
Ear Phone Jack: Yes
Current: 1A
Input Voltage: DC 7-24V
Battery: F970/LP-E6
Power Consumption: ≤12W
4K HDMI: 4096x2160 24p / 3840x2160 (23/24/25/29/30p)
Operating Temperature: -20℃~60℃
Storage Temperature: -30℃~70℃

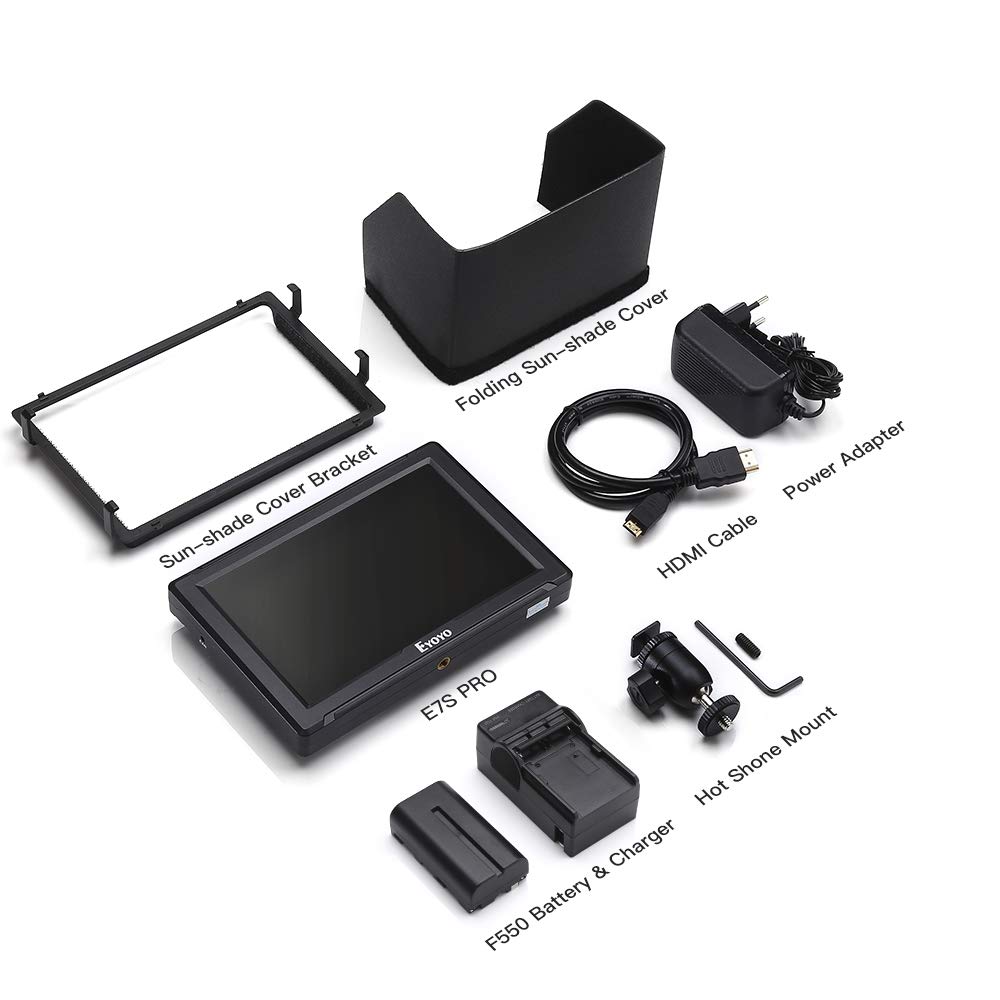

Packing Including:
1x Eyoyo E7S PRO 1x Foldable sunshade
1x F550 battery
1x F550 battery charge
1x HDMI Cable
1x Power Adapter

1x Manual
