Eyoyo 1D Bluetooth Barcode Scanner Wireless, Back Clip Phone UPC USB Bar Code Reader with Battery Level Indicator Compatible with 4.7"-7.2" Android Phone, iPhone for Warehouse Book Library Inventory

Item No.: EY-032L

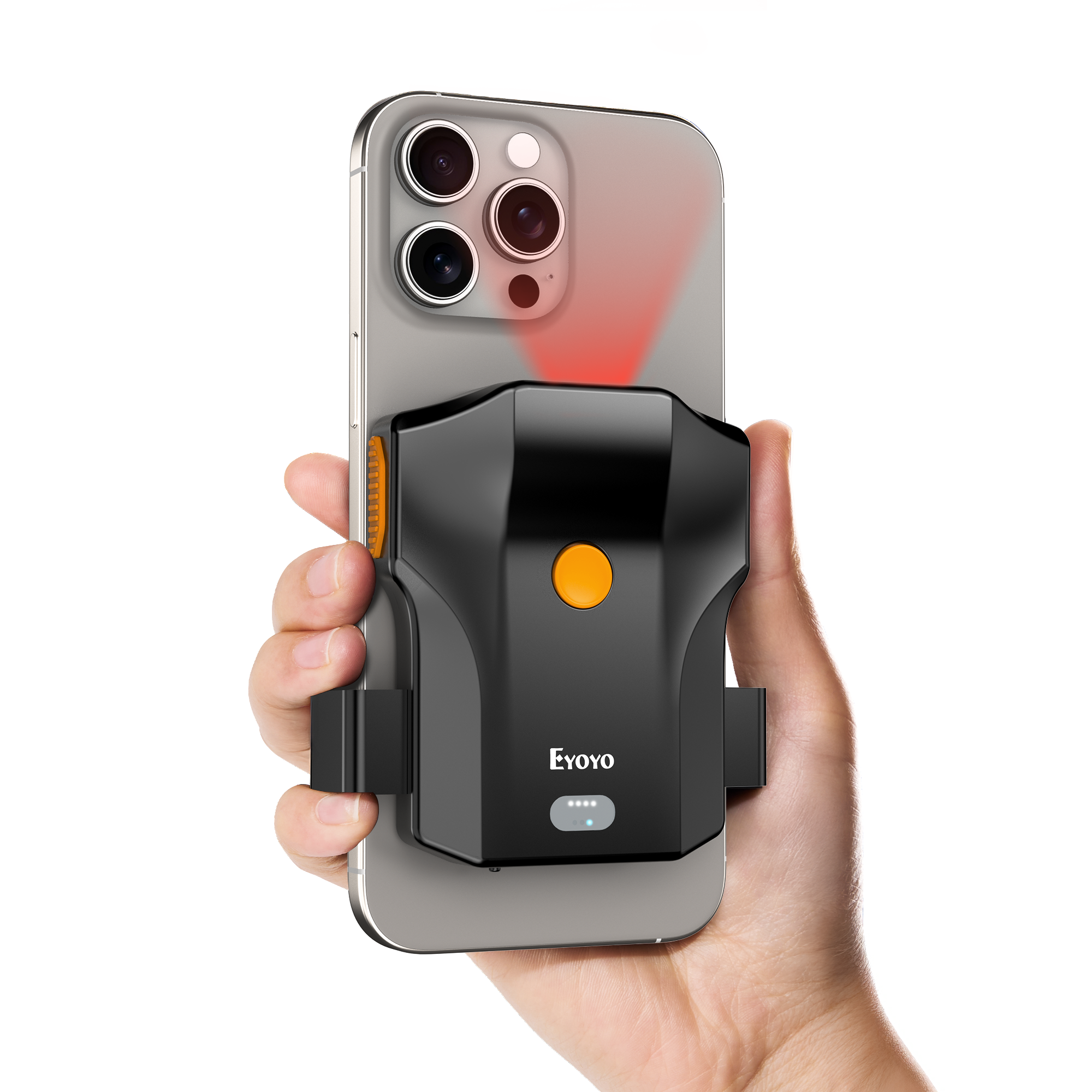

【A BETTER PHONE MATE SCANNER】- Its groundbreaking horizontal retractable clip perfectly solves the problem that the original vertical retractable clip cannot be adapted to the large phone size. Adapts to any screen size between 4.7"-7.2" phone. Made of high-toughness aviation material, not easy to break. Designed with anti-slip silicone on the clip, the holder will not cause damage to your phone. The 0.5" depth of the holder will suitable for most heavy phones and thick phone cases.

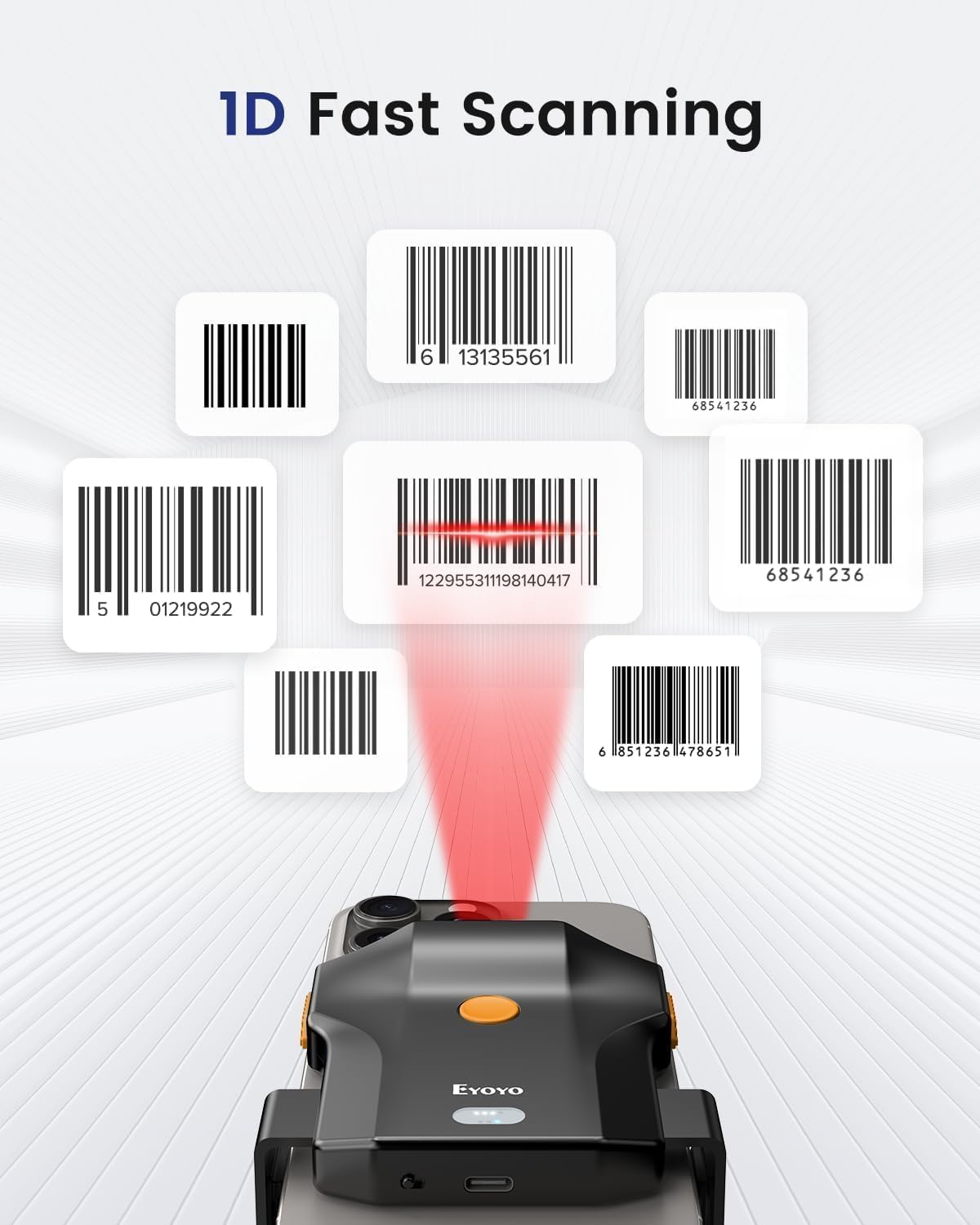

【HIGH-SPEED SCANNING】-The Eyoyo 1D laser-based phone back clip scanners can be used for several applications requiring quick and accurate scanning of 1D barcodes. it can provide audible feedback after a successful scan. Better scanning performance for even some hard-to-read 1d codes, damaged 1d barcodes, reflective barcodes, and high-density barcodes.
【BLUETOOTH & 2.4G WIRELESS & USB CONNECTION】-The steady and sustainable Eyoyo back clip scanner can sync with Bluetooth, 2.4G Wireless, and USB Wired connection. It doesn't need difficult programs or configured settings. Just connect the scanner to your phone, tablet, or pc system and the companion scanner will do the rest.
【BATTERY INDICATOR LEVEL】-Eyoyo is the one to design the battery indicator level on the phone back clip barcode scanner. With the unique battery indicator light showing the remaining battery level, no more Low battery anxiety and no guesswork on charging. The Physical power switch button helps you save energy in case of an error operation.
【15H LONG WORKING TIME】-Just scan, no one can stop you. The extraordinary low-power design makes you can work whole day without worrying about the battery. The Long battery life allows for extended use on a single charge. The 1200mAh rechargeable battery can support continuous work for 15 hours after being fully charged. It only takes 2 hours to fully charge, saving you time.

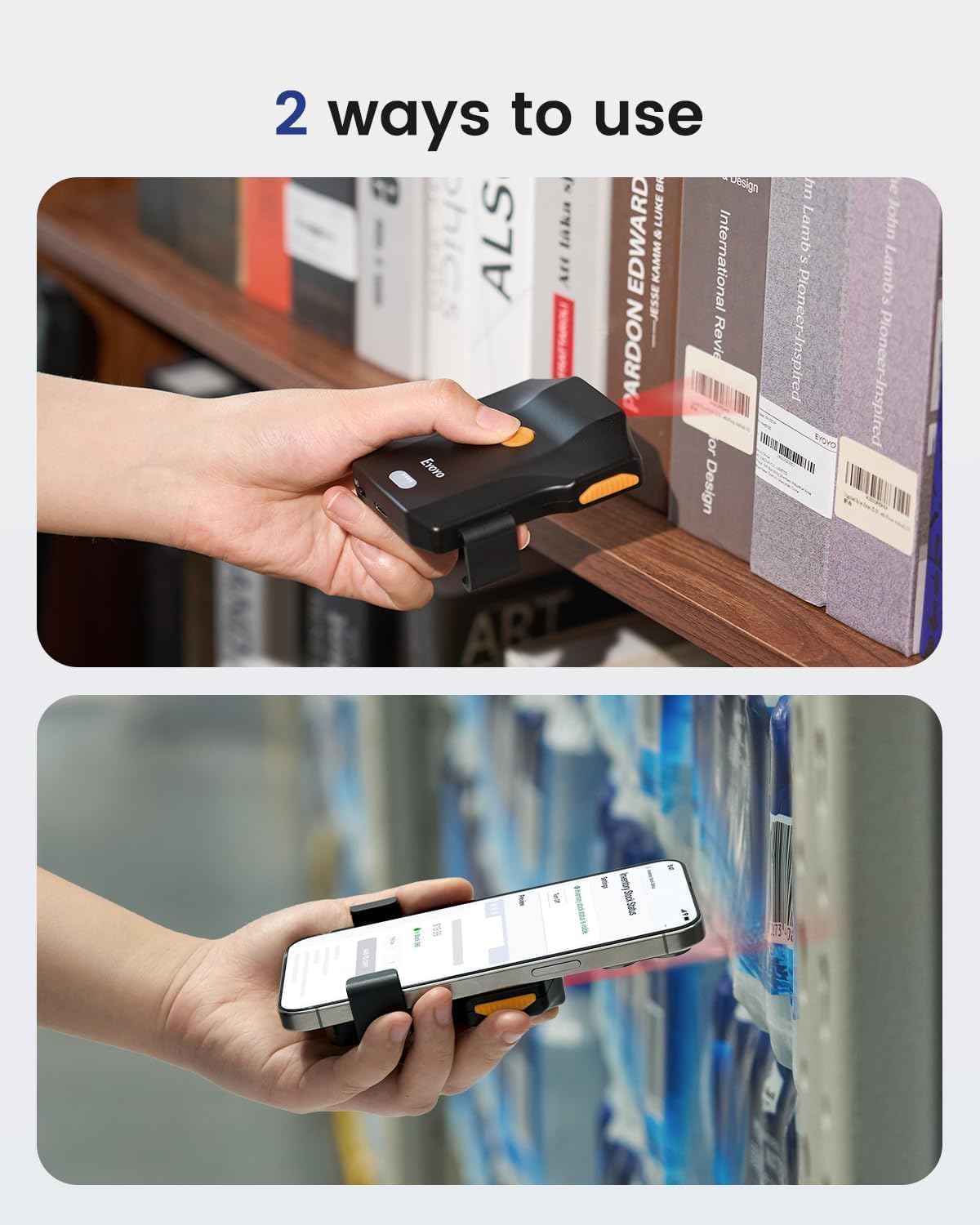

【2 WAYS TO USE】- Install it on the phone, it's a back clip phone barcode scanner. Removed from the phone, it can be used as a portable mini pocket barcode scanner. It is easy to install and remove.
【3 SCANNING BUTTON DESIGNS】-Design with 3 scanning buttons, to achieve left, right, up and down multiple positions to scan, making you more easily to choose a more comfortable scanning way.
【CUSTOMIZE UTILITY FUNCTIONS】- Beep/Vibration ON/OFF set, If you are tired of the sound of scanning, simply scan the set code and enter into silent or vibration mode. Adds custom prefix/suffix digits, hides front and back characters, adds keyboard keys (CR, LF, TAB, CR&LF, etc.) to the scanning operation and so on.
【WIDELY APPLICATIONS】- it is well suited for a variety of portable applications. It can be used as an accessory to a PDA or cellphone as well as an independent data collector. The companion scanners can be used for warehouses, retail, transportation, logistics, access control, inventory management, asset tracking, visitor registration, or integration into a point-of-sale system.
USER MANUAL
Description
Bluetooth barcode scanner

No exaggeration,the new Eyoyo back-clip barcode scanner perfectly solves all the concerns of new and existing customers.

Compared with other back-clip scanners,it can perfectly combine different sizes and thicknesses of cell phones to make it truly portable.The clip design can be freely moved up and down to avoid the camera in any position.Even more,both sides of the retractable clip arms are made of high hardness aircraft material, no longer easy to break.


back clip scanner
phone scanner
Eyoyo barcode scanner

3-1 Connection Ways



  • Bluetooth Connection:Press and hold the button for 8-10 seconds until the scanner beeps, and turn on your phone to connect to the Bluetooth of EY-032L.
  • 2.4G Connection:Before inserting the wireless receiver into the USB port of your computer, be sure to scan page 21 of the manual to scan the setup code into 2.4G mode. Otherwise, the pairing will not be successful and datas cannot be uploaded and displayed.
  • USB Connection:Plug and play,it is easy to use.




wireless scanner

2 Scanning Mode



  • Manual Trigger Mode: You need press the trigger button to scaning the barcodes.(Most frequently-used method)





  • Continuous Scan Mode: The scanning light is always on when the scanner is electrified.You can scanning barcode without pressing any trigger button.(Especially fits for the production line at factories)




portable bar code scanner



  • Supported Barcodes



1D CODE:Code128, EAN-8, EAN-13, ISBN, ISSN, UPC-E0, UPC-E1, UPC-A, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, IATA 2 of 5, Code 39, Code32, Code 39 Full ASCII, Codabar, Code 93, Code 11, MSI Plessey etc.



  • Add Prefix and Suffix



Support to add STX/EOT/Ctrl-]/Ctrl-\ and other control characters as prefix and suffix.



  • Hide Characters:Hide front and back characters 8 bits or more.
  • Storage modes



When the phone can't be at your side and you need to use the scanner alone, storage mode is suggested, there is no need to keep the Bluetooth connection when scanning, the scanned data will be stored in the internal memory, then upload datas at once after finishing scanning.



  • Sound & Vibration Set



Scan the setup code on page 28 of the manual to turn on and off the sound/vibration and adjust the volume.



  • Strong Compatibility



*Compatible Device: Compatible with computer, laptop, POS, smartphone, tablet, iPhone and iPad.

*Compatible Operating System: Compatible with Windows XP/7/8/10/11, Mac OS, Linux, Android and IOS.

*Compatible Software: Compatible with Word, Excel, Novell, Quickbook, Scoutiq, Scoutly, etc common Software.

Note: 1.Not compatible with Google Chrome OS.2.Not compatible with the software that has its own custom scanner, such as Square POS, Amazon fire.
