Upgraded Eyoyo 2D Bluetooth Android Barcode Scanner, Portable Back Clip Wireless 1D 2D QR Barcode Reader PDF417 Data Matrix Code Image Scanning Compatible with iPhone, iOS

Item No.: EY-017P

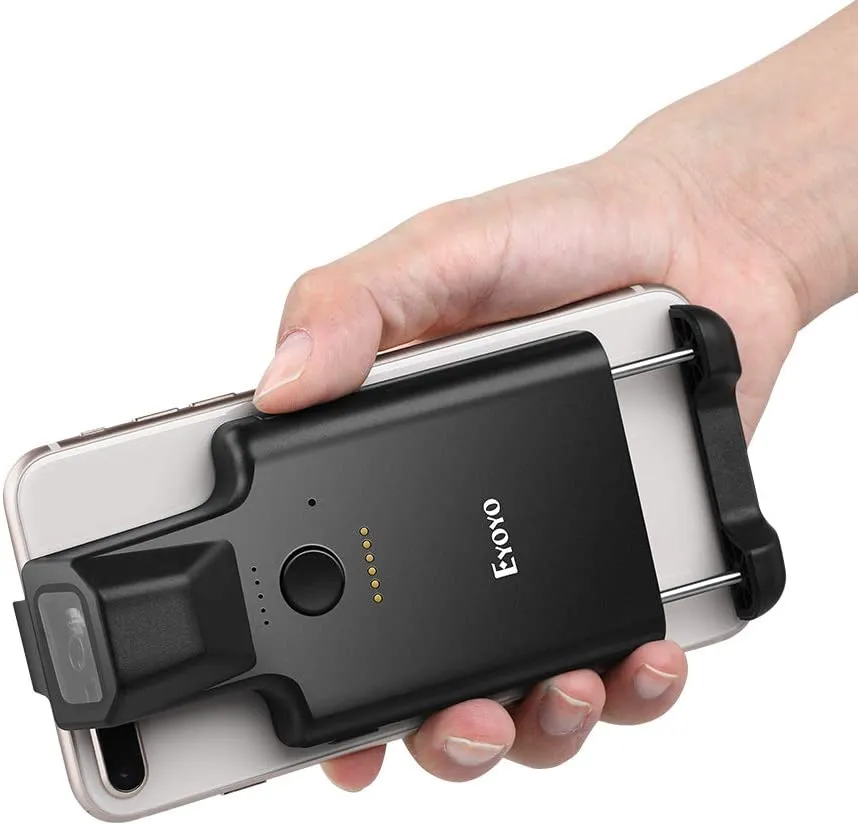

【Phone Back Clip Design】: Design with only 90g/3.1oz weight and retractable bracket, the barcode scanner can be easily installed on mobile phones with a length of 5.4-6.5 inches. You can use your barcode scanner anywhere you want.
【Bluetooth Barcode Scanner】: Eyoyo back clip barcode scanner is specially designed for work with your smartphone. With Bluetooth connection, You can scan the barcode and check the barcode on your phone simultaneously.
【1D 2D QR Barcode Scanner】:Eyoyo barcode scanner With advanced CMOS sensor ability which can easily capture most of the 1D barcodes, such as UPC/EAN, Code39, Interleaved 2 of 5, Code93, Code 128, Codabar, etc barcode. 2D barcode: QR, DataMatrix, PDF417, Aztec, Hanxin, Micro PDF417.

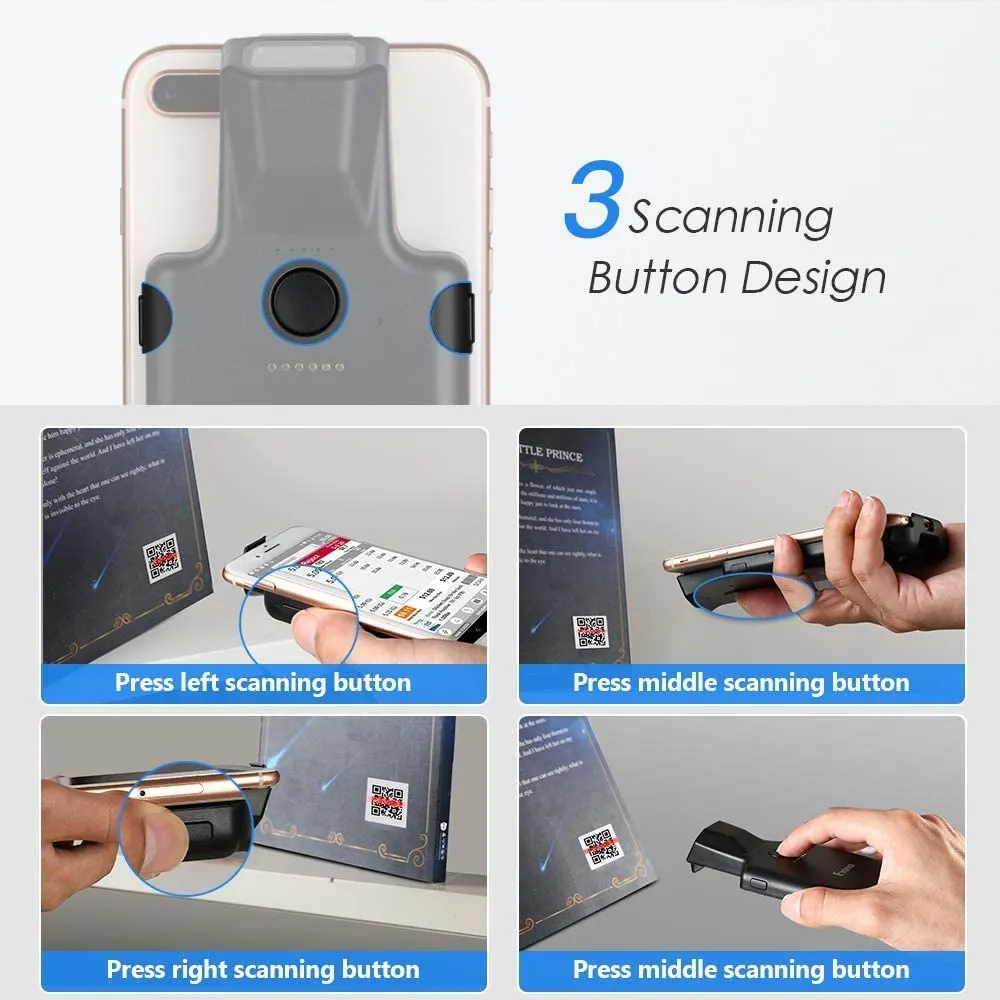

【3 Scanning Button Designs】: Design with 3 scanning button, to achieve left, right, up and down multiple positions to scan, making you more easily to choose a more comfortable scanning way.

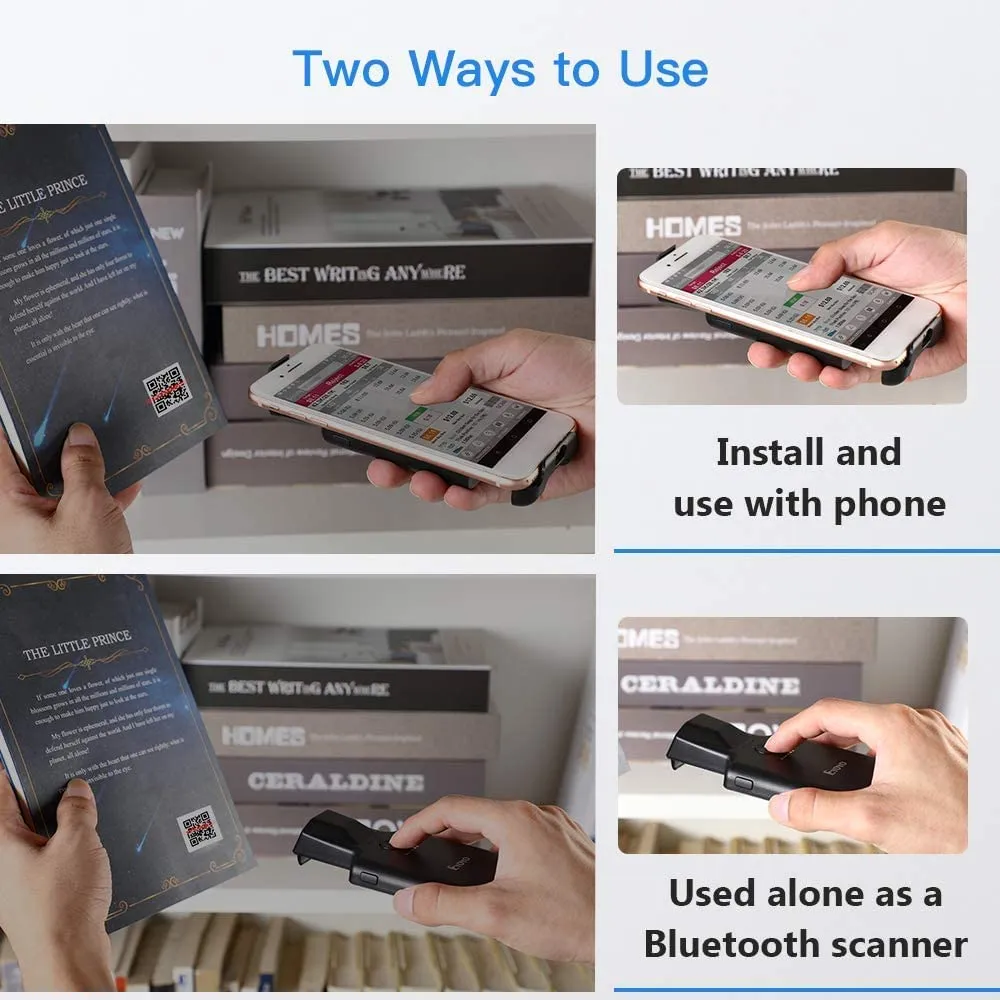

【Two Ways to Use】: You can use it as a back clip barcode scanner to fixed on the phone, or you can use it alone as a normal Bluetooth barcode scanner.
USER MANUAL
Description FAQ
Eyoyo 2D barcode scanner

New Upgraded EY-017P 2D Bluetooth Phone Back Clip Barcode Scanner

-

Eyoyo new product - 2D Bluetooth Back Clip Barcode Scanner.

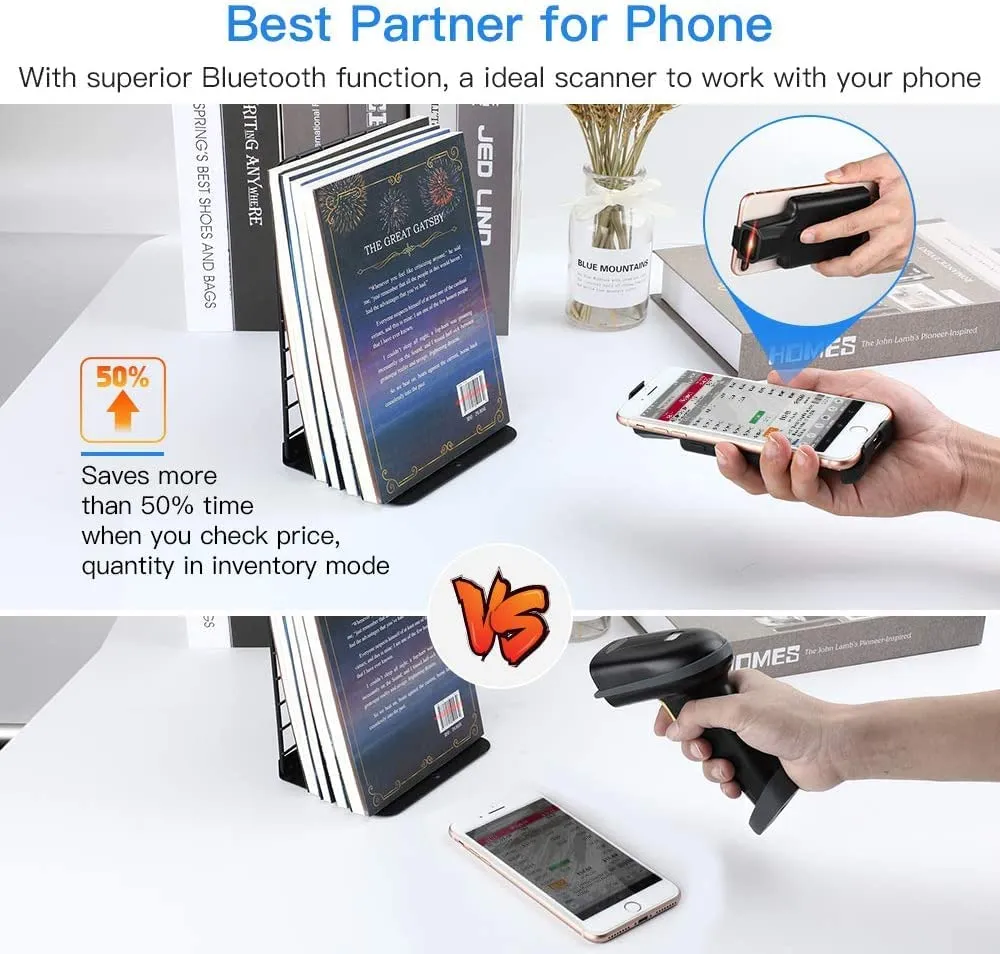

This barcode scanner is the best partner to work with phone, it is designed to clip in the back of your phone, by simple Bluetooth connection operation,

when you scan barcode, you can check barcode data or quantity upload on the phone simultaneously, easy to use.

Also, with 3 scanning button designs, you can choose the best press button to scan when you use it, giving you better user experience.

What's more, if you need, you can use it as a normal Bluetooth scanner to work with phone, iPad and computer via Bluetooth connection.

-

HOW TO USE THE BLUETOOTH BARCODE SCANNER WITH YOUR PHONE?

1.When you turn on the barcode scanner, you will see the blue light is flash.

2.Navigate to your phone’s Settings application,Under Settings, find the Bluetooth option and make sure it is set to “On”

3.Once Bluetooth is enabled, select your scanner named "EY-017P" from the list of available devices.


phone barcode scanner

Please Be Note:

1. Without a phone case, it can work for from 135mm/5.31inch to 170mm/6.69inch size phone.

2. If your phone with a simple phone case, like silica gel case, thin phone case, it can support work for from 135mm/5.31inch to 168mm/6.61inch size phone.

3. But if your phone case has solid bumps on the back or too thick, it may not be supported to work with our scanner.

Bluetooth barcode scanner

1d barcode scanner

portable barcode scanner

Bluetooth Connection:

With Bluetooth function, you can connect with your phone, ipad, tablet, computer.

Compatible with Windows, Mac OS, Linux, Android, IOS.

Note: Your device must be support Bluetooth function can work with our scanner.

1D & 2D Barcode Decode:

Support scan most of 1D, 2D barcode from paper, label and screen.

Compatible 1D Barcode Type:

UPC, EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5,MSI, GS1, Codabar

Compatible 2D Barcode Type:

QR, DataMatrix, PDF417, Aztec, Hanxin, Micro PDF417, and so on.

Special Barcode Decode:

Support scan the barcode in color ground.

Support scan UPC/EAN and extra code.

Support scan colorful barcodes and colorful background barcode.

Support scan damaged barcode, broken barcode, distortion barcode, and reflective barcode, etc special barcode.

auto sensing scanner

barcode reader

2d barcode reader

Manual Trigger Mode & Continuous Scan Mode:

-Scanner starts reading after pressing any 1 button of 3 pcs button.

-The scanning light will be always on, scanning the barcode without pressing any button.

1600mAh Big Rechargeable Battery:

Built-in 1600mAh battery, can continue work for you up to 7.5hours but only need 1.5hours to charge.

Custom Configuration:

Support add prefix and suffix

Support add keyboard keys (TAB, CR&LF, etc.) to the scanning operation.

Support enable or disable barcode type

Support turn on/ off buzzer.


phone 2d back clip scanner
Q1:Does it work with apps like Chromebooks,shopify,the Cognex scanner app, the walmart gif 2 app, etc?
A1:First of all, the barcode scanner supports three Bluetooth protocols: HID, BLE, and SPP.
     Please check whether your APP supports one of these three protocols.
     If none of the three is supported, the scanner is uncompatible with your device or APP; otherwise, the scanner can be used in conjunction with your device or APP.
     Please note:since most of the customer's devices or APPs support HID mode, the scanner defaults to the Bluetooth HID protocol when it leaves the factory.
     Please check whether your APP defaults to the HID protocol. If it is, please directly pair it with Bluetooth. If it supports SPP or BLE, please change the Bluetooth protocol through the manual before connecting.

Q2:Does it work with an Iphone?
A2:The scanner supports working with iPhone.

Q3:Are there any ways we can turn off blue the light when scanning?
A3:The scanner light cannot be turned off.

Q4:The scanner won't turn on.
A4:First make sure the scanner is fully charged. If the scanner won't turn on when it is
fully charged, please contact support@eyoyousa.com and send some videos showing your problem.

Q5:What is the password to download the manual?
A5:The password of download manual on Eyoyo official website is support@eyoyo.

Q6:The scan result is not displayed correctly.
A6:If the scan result is missing characters or data, please check the manual to reduce the transmission speed.
If the scan result shows different characters, please ask the customer to check whether the keyboard language of his device is English, if not, please check the manual to change the keyboard language or contact support@eyoyousa.com for the setting code.

Q7:So will this replace trying to use my phones camera to scan barcodes?
A7:It will not affect the use of the camera of the phone itself.

Q8:how can I turn off the scanner if I was not using it? or does it automatically turn off?
A8:Please scan the setting code in the manual to set.

Q9:Can its sound be adjusted or muted?
A9:Please scan the setting code in the manual to set.

Q10:What type of charger can it be charged with?
A10:Please use a charger with a specification of 5V/1A.

Q11:Does this scanner work with excel?
A11:It can work with Excel, world, TXT documents and memos, etc.

Q12:Can you provide a tax invoice on purchase?
A12:Yes, please contact the online seller after placing the order.

Q13:Do you need a WiFi connection for this to work?
A13:No need to use WiFi, just do Bluetooth pairing directly.

Q14:Will this scan into any text field on any app?
A14:Most are supported.

Q15:Is there trigger mode of this device?
A15:This barcode scanner is in trigger mode by default.

Q16:Is there a continuous scanning mode or do you have to push the button for each scan?
A16:You can set the barcode scanner to continuous scanning mode.

Q17:In storage mode,can it detect duplicates?
A17:Not,it can't.

Q18:How do you access the data from the scanner?
A18:When the scanner is successfully connected to your device, please open an EXCEL form or notepad, etc., click on the blank space and scan the code, you can see the data.

Q19:Can this BT(Bluetooth) pair to multiple devices at once?
A19:The scanner can only be Bluetooth paired with one device at a time.

Q20:Does this allow for customizing the pre or post amble?
A20:Yes,please contact support@eyoyousa.com for the setup codes.

Q21:How do I connect to my business system?
A21:Please contact support@eyoyousa.com

Q22:Does this model support adding suffix and prefix ?
A22:Please send what characters you want to prefix or suffix to support@eyoyousa.com to get the setup code.

Q23:The scanner will only work when it is plugged into the computer, will not for me via blue tooth or wireless usb, what do I do?
A23:Please contact support@eyoyousa.com to send some video showing your problem.
      Also, please provide your purchase order number.

Q24:Can i get another copy of the manual? is there a pdf or an online version?
A24:Yes,please contact support@eyoyousa.com for  the manual.

Q25:My button seems to be stuck and won't let press - can this be reset?
A25:Please contact support@eyoyousa.com to send some video showing your problem.
      Also, please provide your purchase order number.

Q26:How to get a wireless usb dongle(2.4G reciver)?
A26:Please contact support@eyoyousa.com

Q27:I have it connected to my ipad but it won’t scan anything.
A27:Please contact support@eyoyousa.com to send some video showing your problem.

Q28:Is there a way to speed up or slow down the numbers being displayed after scanning.
A28:Yes,it supports.Please contact support@eyoyousa.com for the setting code.

Q29:The scanner cannot scan certain barcodes?
A29:Please contact support@eyoyousa.com to send barcodes that you cannot scan.

Q30:The scanner is no longer scanning.
A30:Please contact support@eyoyousa.com to send some video showing your problem.

Q31:The scanner doesn't charge anymore.
A31:Please contact support@eyoyousa.com to send some video showing your problem.

Q32:Could it be used for scanning qr code or pdf417 code?
A32:The scanner is equipped with CMOS sensor, which can easily capture 1D/ 2D(QR/ PDF417/ Data Matrix)ID bar codes from paper and screen,             effectively compensate for the problem that laser scanner can not identify screen code.

Q33:What type of charging cord does the scanner use?
A33:Type-C port

Q34:How do i know if its charging?
A34:The red indicator light on the right side of the scanner will turn on all the time during charging,and it will go off when the scanner is fully charged.

Q35:The scanner supports working with what size mobile phone.
A35:it can work well with almost all the normal phone with a width of 60mm(2.36inch) to 110mm(4.33 inches).

Q36:Clips on scanner broke.
A36:Please contact support@eyoyousa.com to send some pictures showing your problem.
       Also, please provide your purchase order number.

Q37:it does not charge
A37:Please contact support@eyoyousa.com to send some video showing your problem.
        Also, please provide your purchase order number.

Q38:Can we also scan the code in displays like monitor, barcode in mobile phones?
A38:The scanner is equipped with CMOS sensor, which can easily capture 1D/ 2D(QR/ PDF417/ Data Matrix)ID bar codes from paper and screen, effectively compensate for the problem that laser scanner can not identify screen code.
